18 Way Signal Penetrator from Rokko

Please click HERE for a brochure detailing part numbers, spares and specifications →

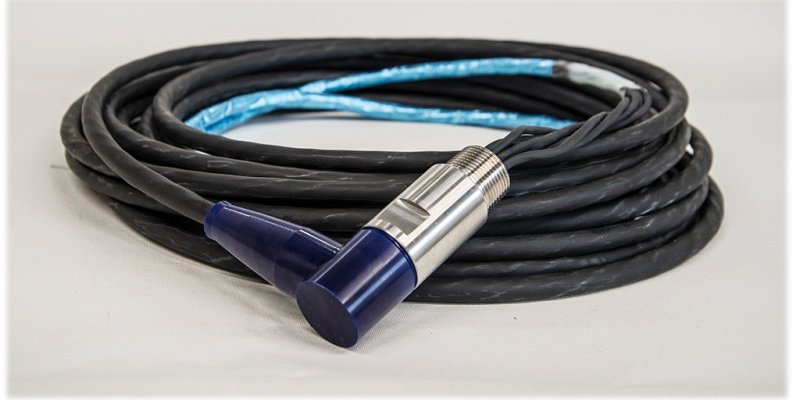

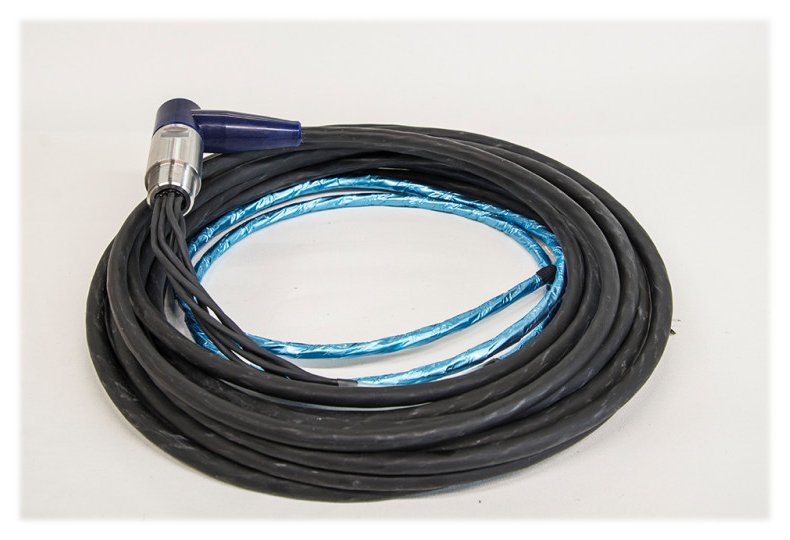

The 18-WAY DDC SIGNAL PENETRATOR 300 MSW has been designed for use on electrical paths through pressure vessels and equipment. It can withstand both gas and hydrostatic pressure, in line with the requirements of DNV rules for classification of diving systems. The penetrator’s body, in its standard configuration, is manufactured in stainless steel (AISI 316L). Alternatively, it can be manufactured on request in both Brass and Titanium (optional). Penetrators can be manufactured entirely according to client requirements, therefore the connection types and dimensions, cable characteristics, penetrator body material, and type and color of the molding resins can be customised according to the specific applicable requirements. Inner and outer cables are composed 6 TSPs (Twisted Shielded Pairs), each one having its independent shield passing through the penetrator. This robust design makes it the ideal choice for signal communications such as clear analog voice and video communications, fast serial links and even Ethernet links up to 100 Mbps (megabits per second).
